New Interfaces for Textual Expression

New Interfaces for Textual Expression is a series of devices intended to create and manipulate text. Analogous to contemporary work in the field of New Interfaces for Musical Expression (NIME), New Interfaces for Textual Expression are intuitive but not literal: they map gestures not to characters (as with conventional writing devices, such as the keyboard and the pen), but to broader manipulations of language and layout. The devices suggest new syntaxes for composing, reading, and performing text.

I kept a blog tracking my progress while making my thesis interfaces, which can be found here. At the end of the semester, I gave a twenty minute presentation that talked about the interfaces and some of the theory behind them; a link to this presentation is available on request. The rest of this post is a summarized version of my thesis paper (PDF).

Oulipo Keyboard

The Oulipo Keyboard is a commonplace computer keyboard—with a twist. A number keys on the keyboard have been rendered inactive—namely, every vowel key except e.

Oulipo Keyboard

The Oulipo Keyboard is an example of an interface that NIME theorists John Bowers and Phil Archer might call an “infra-instrument”: an existing instrument that has been broken or restricted. It’s the simplest implementation of a New Interface for Textual Expression. The writer must make tactical adjustments to their writing practices in order to compensate for the unexpected affordances of the interface. The resulting text bears the traces of the interface through which it was realized.

Oulipo Keyboard: Demo video from Allison Parrish on Vimeo.

Entropic Text Editor

The Entropic Text Editor is a tool for creating concrete, nonsensical poetry. It consists of a keyboard, a repurposed analog expression pedal (originally intended for use with an electronic musical keyboard), and a text editor. The text editor is programmed to modulate the text according to the position of the pedal: as the pedal is pressed down further, more randomness is applied to the character being typed.

Three kinds of “randomness” are applied to the text in response to the pedal’s position. The first is the letter’s identity—i.e., whether the letter comes out as itself, or a letter nearby in the alphabet. The kerning of the characters and the weight of the typeface are also affected.

Entropic Text Editor: Demo video from Allison Parrish on Vimeo.

The Entropic Text Editor is another example of a simple New Interface for Textual Expression, what might be termed an “augmented” textual interface (by analogy with augmented musical instruments, such as Dan Overholt’s Overtone Violin). The hands are free to engage in the familiar act of typing, but another channel of information is added, which modifies how the typing works. The artifacts that result from the Entropic Text Editor incorporate not just the literal content of the text, but also a history of the writer’s gestures.

Sample text from the entropic text editor

Poem Sphere

Poem Sphere

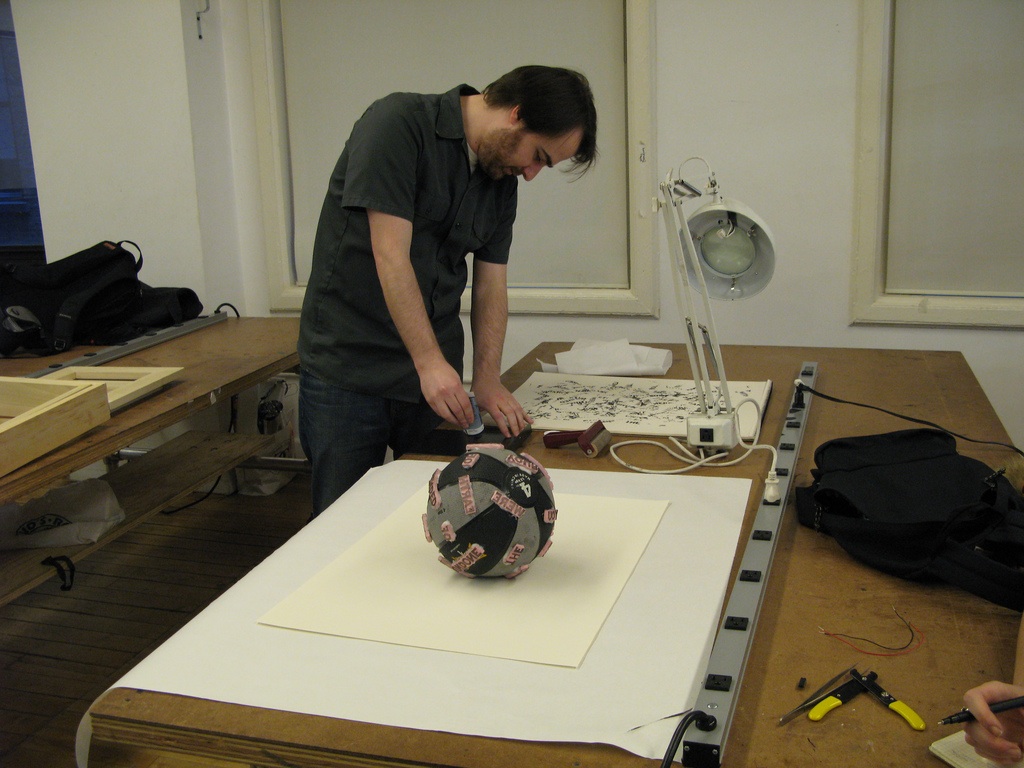

The Poem Sphere is an example of a non-digital textual interface: purely physical, it operates without assistance from a computer. It consists of a four-pound medicine ball with linocut words glued to the outer surface. When you ink up the ball and roll it across a surface, it creates a composition: fragments of words, spread across the page.

The Poem Sphere provides a new way of making text that is expressive but not literal. Using this tool, the writer’s choices about how the text unfolds involve tactile and choreographic decisions, rather than decisions about letters, words, and sentences. The goal was to create concrete poetry, in the vein of Apollinaire’s Calligrammes, the French Letterists, and bpNichol, while emphasizing the physical process that brought the text into being.

Poem Sphere print #1

Markov Live!

Markov Live! is a physical interface for an algorithm: namely, a Markov chain.

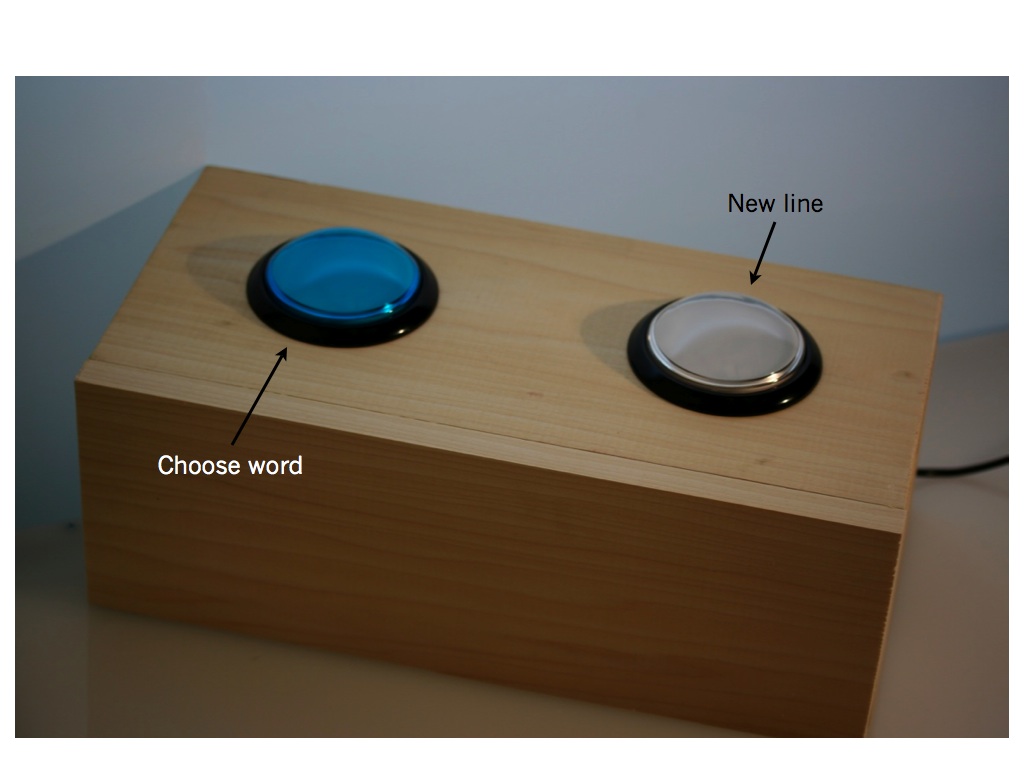

Markov Live! interface

Markov Live! interface

Here’s how the interface works.

  • A source text is loaded into the program; the text is broken up into tokens (words).
  • The writer/player pushes the “Select word” button to start the program; two sequential tokens, selected at random from the text, are printed to the screen.
  • The text is searched for all occurrences of the previous two tokens; the software builds a list containing all tokens that follow those two tokens, wherever they occur in the source text. Those tokens are then flashed to the screen one-by-one, in place.
  • The writer/player pushes the “Select word” button when the desired alternative is being displayed. Step 3 is then repeated, but using the most recently generated word along with the word before it.
  • At any time, the writer/player can push the “New line” button to advance the text one line.

Markov Live! Demo video from Allison Parrish on Vimeo.

Markov Chains are a well-known tool for generating poetic texts, being first used for that purpose no later than Hugh Kenner and Joseph O’Rourke’s Travesty generator, released in 1984. Gnoetry uses a similar algorithm. The Markov Live! interface and Gnoetry are similar in that they both use human input to “guide” the algorithmic process. Markov Live! introduces a temporal dimension—decisions about the text are made in real time—and an element of performance: the writer/player must time their button presses carefully in order to achieve the desired text.

Beat Poetry

Beat Poetry: Demo video (w/ Ben Leduc-Mills) from Allison Parrish on Vimeo.

Beat Poetry is an example of a synaesthetic textual interface: it maps the act of playing a musical instrument (specifically, drums) to the act of writing text. The interface consists of two electronic drum trigger pads, two drum sticks, a computer screen, and an audible indication of the beat.

Beat poetry diagram

Here’s how it works: One drum pad is designated as the generator, and hitting this pad will produce a word. The other drum pad creates a new line when hit. At the beginning of the performance, the software reads in a chosen source text, and ranks the words in the text according to their frequency; the top ten percent are labeled “common,” and the bottom ninety percent are labeled “rare.” Hitting the generator pad on the beat will produce a random word from the “rare” set, while hitting the pad off the beat will produce a random word from the “common” set.

Words from the “common” set tend to be shorter, monosyllabic words from the grammatical classes of article, pronoun and preposition (e.g., the, he, to, in, etc.), while those in the “rare” class tend to be heavier, polysyllabic nouns and verbs (e.g., refrained, instinct, dissimulation). Mapping rare words to the beat and common words off the beat tends to reproduce the natural lexical rhythm of English text (disregarding semantics).

Here‘s a sample text generated from a Beat Poetry session (PDF). This text serves not just as a transcript of the textual performance, but of the musical performance as well. This fact has some interesting implications. In my utopian textual world, a bootleg of a musical performance won’t be an audio recording—it’ll be a printout of the text the musical performance created.

NITE versus contemporary approaches in digital poetics

NITE stands in contrast to some contemporary approaches in digital poetics, in its emphasis on creating new ways of writing text, rather than new ways of interacting with it. The following passage from poet and critic Talan Memmott’s essay Beyond Taxonomy: Digital Poetics and the Problem of Reading, contains language and metaphors that will help elaborate on this point. “Digital poetry presents an expanded field of textuality that moves writing beyond the word to include visual and sound media . . . . Its performance or poetic emergence requires the participation of a user or operator to initiate the computational process encoded by its author. Like a musician playing an instrument, a user could be said to play an application.” (My emphasis.)

Although Memmott’s passage ends up in the same neighborhood as NITE—asserting that a text can be “played” like a musical instrument—the model he suggests for digital poetics is very different. That model looks like this: in digital poetry, the author creates a work (an application), then encodes it behind an interface; the user’s job (the term user is especially important, opposed here to author) is to decode the work obscured by the interface. The interface and the text generated by the interface are considered to be an inseparable unit. Digital poems, in this model, are standalone machines—ergodic texts, to use Espen Aarseth’s terminology. Here’s what that model looks like (the blue box represents the interface):

Author, text, interface, audience: traditional cybertext model

The model proposed by New Interfaces for Textual Expression, on the other hand, places the interface between the text and the author. The interface mediates the text’s creation, but is not synonymous with it. The “user” of a New Interface for Textual Expression is the author, and the role of the audience is not to decode the interface, but to witness (whether during or after the fact) the author’s act of creating the text. Although the texts created with these interfaces require unique methods of reading in order to be fully understood, they need not be screen-based, multimedia, or interactive. Here’s what the NITE model looks like.

Author, interface, text, audience: the NITE model

Future directions

The devices presented here are intended to establish a basic taxonomy of textual interfaces. Some possibilities for further work include physical interfaces for other common text generation algorithms (such as a context-free grammar), or for rearranging other formal units of text (sentences, paragraphs, verses, acts). Experimentation with the form of the interface—haptic, wearable, collaborative—also seems like a fruitful area of research.

The possibility that interests me the most, however, is public performance of text. NITE’s new configuration of author, interface and audience suggests that the creation of text is itself a kind of performance. With the right interface, the writer—essentially a performer of text-creation—could become a (public) performer on the same level as the dancer, actor, and musician.

Subsequent Interface Experiments

Since I wrote and presented my thesis in 2008, I’ve made a number of other prototype programs and devices that fit under the NITE rubric.
